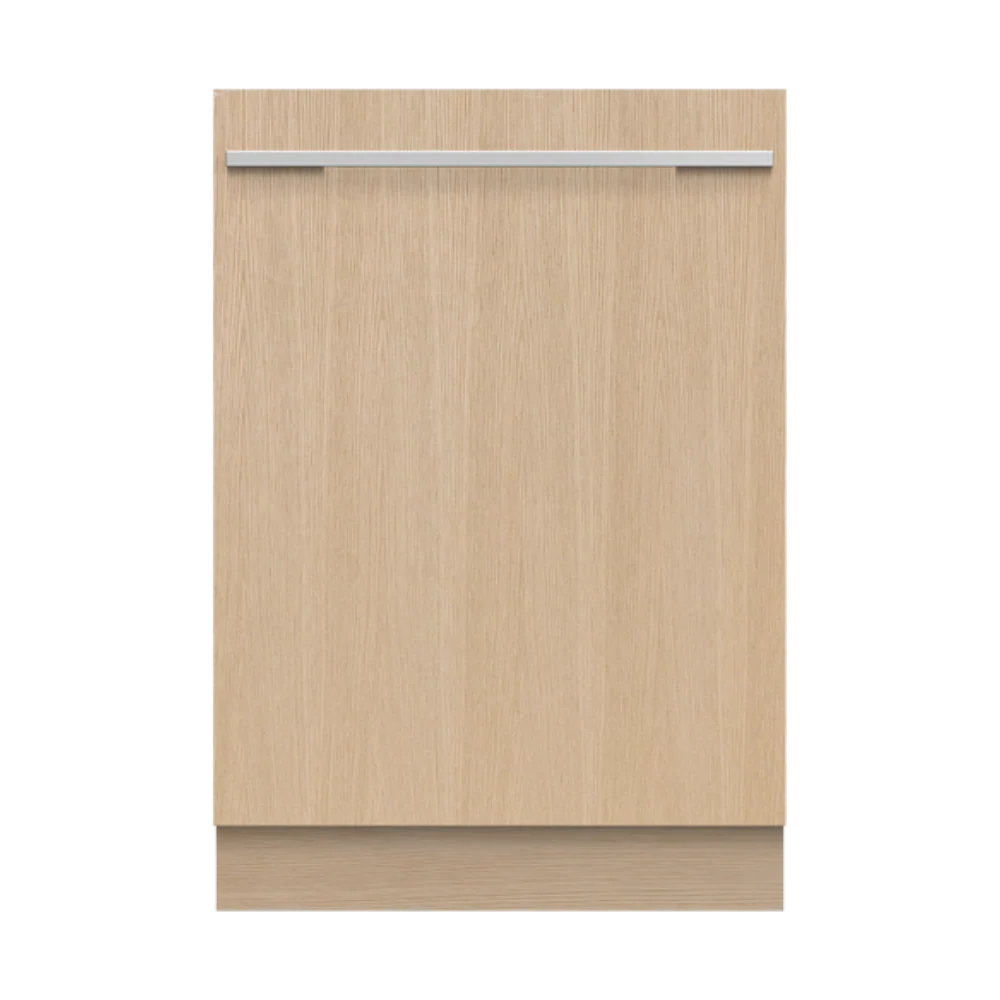

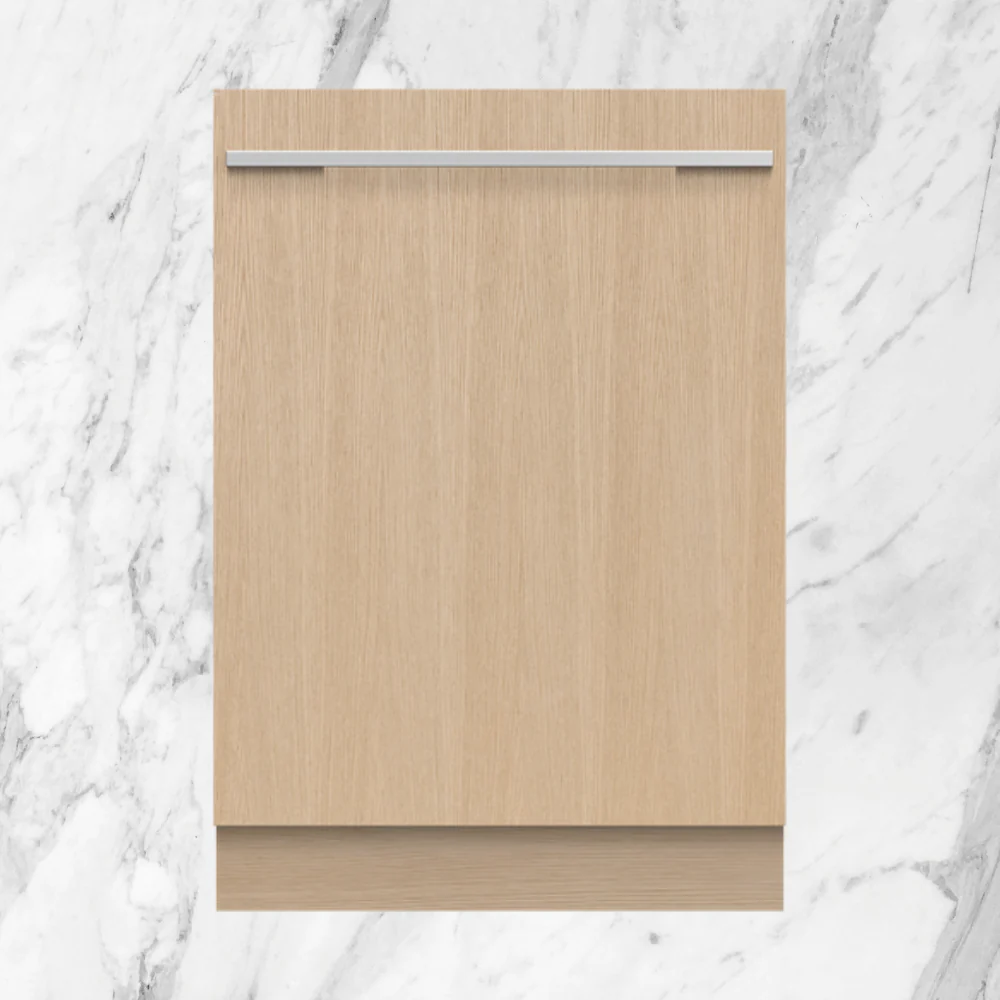

Fisher & Paykel Series 5 Integrated Dishwasher Panel Ready

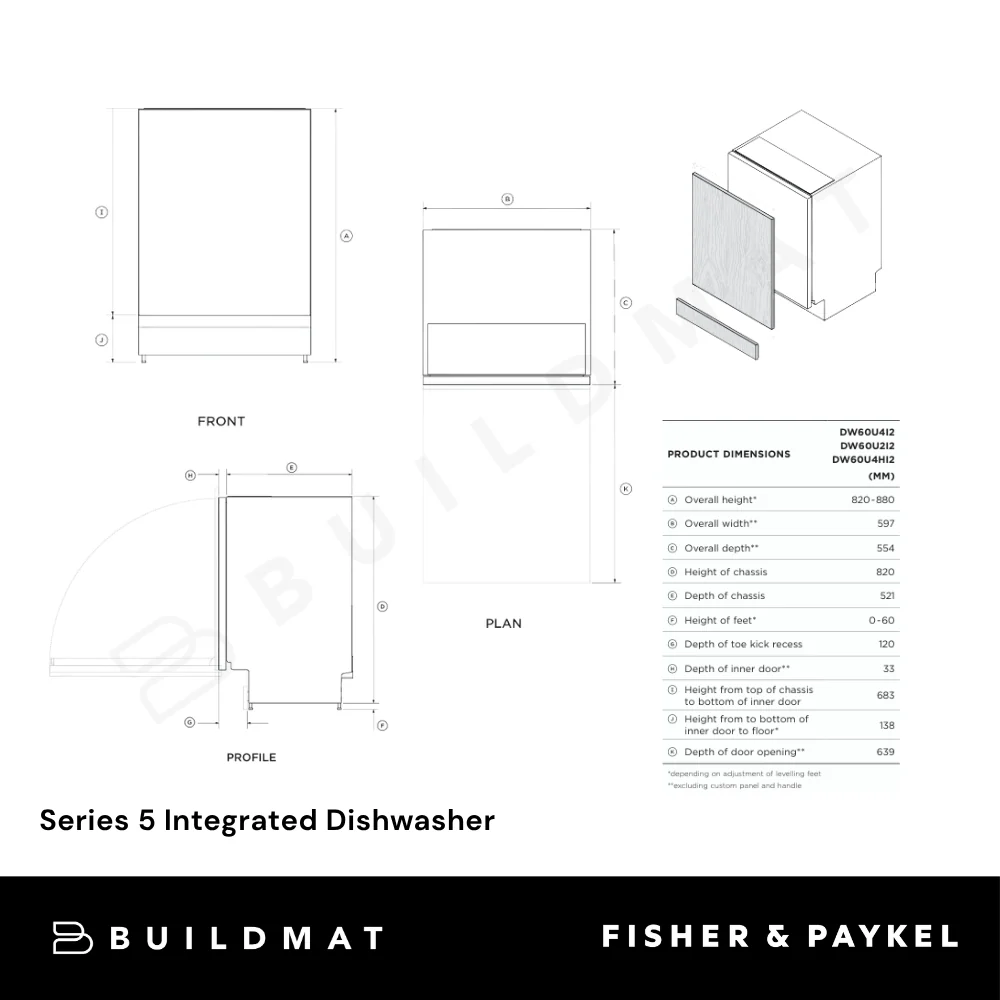

Product Dimensions
- Width: 598mm
- Height: 820 - 880mm
- Depth: 554mm
Features & Benefits
- Customise with your own front panel and handle to match your kitchen cabinetry
- Seven wash programs from Heavy to Light, including Auto and 60min
- Dry+, Sanitise and Half Load modifiers provide extra wash options
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
*Images for illustration only. No door panels or handles included. Stainless steel versions available for separate purchase to integrate with kitchen cabinetry.
Seamless Integration
Customise your dishwasher with a panel and handle matching your cabinetry, for a seamless finish in your kitchen
Effortless Drying
For beautifully dry dishes every time, this dishwasher features an advanced drying system. It combines fan-assisted drying with an automatic door opening at the cycle's end. The Auto Door Open Dry feature releases excess steam, ensuring dishes are immediately ready for use or storage. An innovative air curtain channels the steam away from the adjacent benchtop, protecting your cabinetry.
A Reliable Clean
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
Customise Your Wash
The Half Load modifier is perfect for washing a partial load, for faster turnaround of dishes. Sanitise provides extra protection, killing 99.9% of bacteria* in the final rinse, while the Dry+ modifier is great for plastic dishes. *Certified to NSF/ANSI Standard 184
Efficient Performance
With a 4 star energy rating and 5 star water rating, this dishwasher delivers a powerful wash. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
Flexible Loading
Designed to fit 15 place settings with ease, adjustable racks help you to load and care for various items – including a height-adjustable upper basket, and foldable cup holders and tines.
Accessories (Included)
- Cutlery basket
- Kickstrip
Capacity & Loading
- Accommodates round plates up to (lower basket): 320mm
- Accommodates round plates up to (top basket): 250mm
- Adjustable height, foldable cupracks
- Easy lift adjustable upper basket
- Fold down tines
- Place settings: 15
Performance
- Noise emissions: 46dBA
Consumption
- Energy rating: 4 Star
- Energy usage: 246kWh/year
- In-use energy carbon emissions estimate: 150.1kgCO2e/year
- Water consumption (per wash cycle): 12.6L
- Water efficiency: 5 star (WELS)
Controls
- Energy saving delay start option of up to 12 hours
- Keylock
- Rinse aid indicator light
- Smart Appliance
Features
- Air curtain for bench protection
- Aquastop
- Auto Door Open Dry
- Flood protection
- Fully independent spray arms
- Internal tub material: Stainless Steel
- Motor type: Asynchronous
- ThermoDry system
- Three-stage filtration system
Performance
- Noise emissions: 46dBA
Power Requirements
- Amperage: 10A
- Supply frequency: 50Hz
- Supply Voltage: 220-240v
Wash Program Modifiers
- Dry +
- Half-load
- Sanitise
- Wash modifiers: 3
Wash Programs
- 60 min
- Auto
- Eco
- Heavy
- Light
- Medium
- Rinse
- Wash Programs: 7
Water Connection
- Water Pressure: 30 kPa - 1000 kPa
- Water supply: 3⁄4" BSP (20mm) Connector Water Inlet Hose
